LGS

Feature
1. Compact and versatile application
  The combustion fan and various safety devices are assembled in compact.
  This burner,therefore, can be mounted on air furnace or boiler with a little
  space
2. Simple operation
 In accordance with the safety codes designated by various gas
 manufacturing companies,necessary devices are assembled.
 The control panel employs one touch method which makes its
 operation simple.
3. Wide range application
 Forced draft combustion is standard. The burner ranging 100,000 to
 40milionKcal/Hr can make selection of burner possible matching to
 air furnace and boiler.
4. Safety first
 The LGS type gas burner employs nozzle mixing method of gas and air
 thatassures no back-fire trouble in pipe line. Safety shut-off valves,
 the most important component mounted on supplying line,are ITT General
 Control's make of which reliability has been firmly established with approval
 of FM,AGA and UL codes. As to other control devices,only A-1 class
 products are used from the view point of safety first.
Specification
Model LGS-8 LGS-16 LGS-25 LGS-40 LGS-65 LGS-100 LGS-160 LGS-250 LGS-400
Capacity(x104kcal/h) 80 160 250 400 650 1,000~
1,200
1600 2,500 4,000
Consumption(Nm3/h) 19-95 32-190 50-290 68-470 97-770 143-1430 198-1980 245-2900 315-4700
Turn down ratio 1:5 1:6 1:7 1:8 1:10 1:12 1:15
Control method Proportional control
Fuel L.N.G,City gas, L.P.G,Combustible gas, etc
Pressure
drop
LNG 40 80
LPG 80 160
Draft loss(mmAq) 130 140 150
Weigh(kg) 100 175 210 285 385 570 700 1,000 1,300

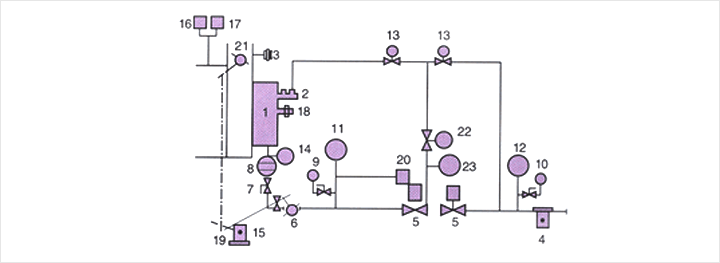

P&I.D

1  BURNER BODY 13  PILOT SOLENOID VALVE
2  PILOT BURNER 14  GAS PRESSURE SWITCH
3  PRESSURE SWITCH 15  MODUTROL MOTOR
4  GAS FILTER 16  BOILER PRESS LIMIT SWITCH
5  MAIN SHUT OFF VALVE 17  BOILER PRESS CONTROL SWITCH
6  GAS CONTROL VALVE 18  FLAME DETECTOR
7  GAS STOP VALVE 19  LINKAGE
8  FLAME ARRESTER 20  MAIN GOVERNOR
9  GAS PRESSURE GAUGE 21  SECONDARY AIR DAMPER
10  GAS PRESSURE GAUGE 22  GAS VENT VALVE
11  GAS PRESSURE SWITCH 23  GAS LEAKAGE DETECTION SWITCH
12  GAS PRESSURE SWITCH
